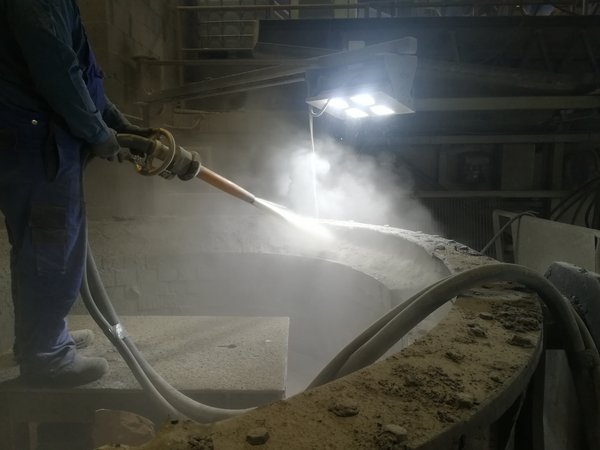

Gunning systems for refractory material

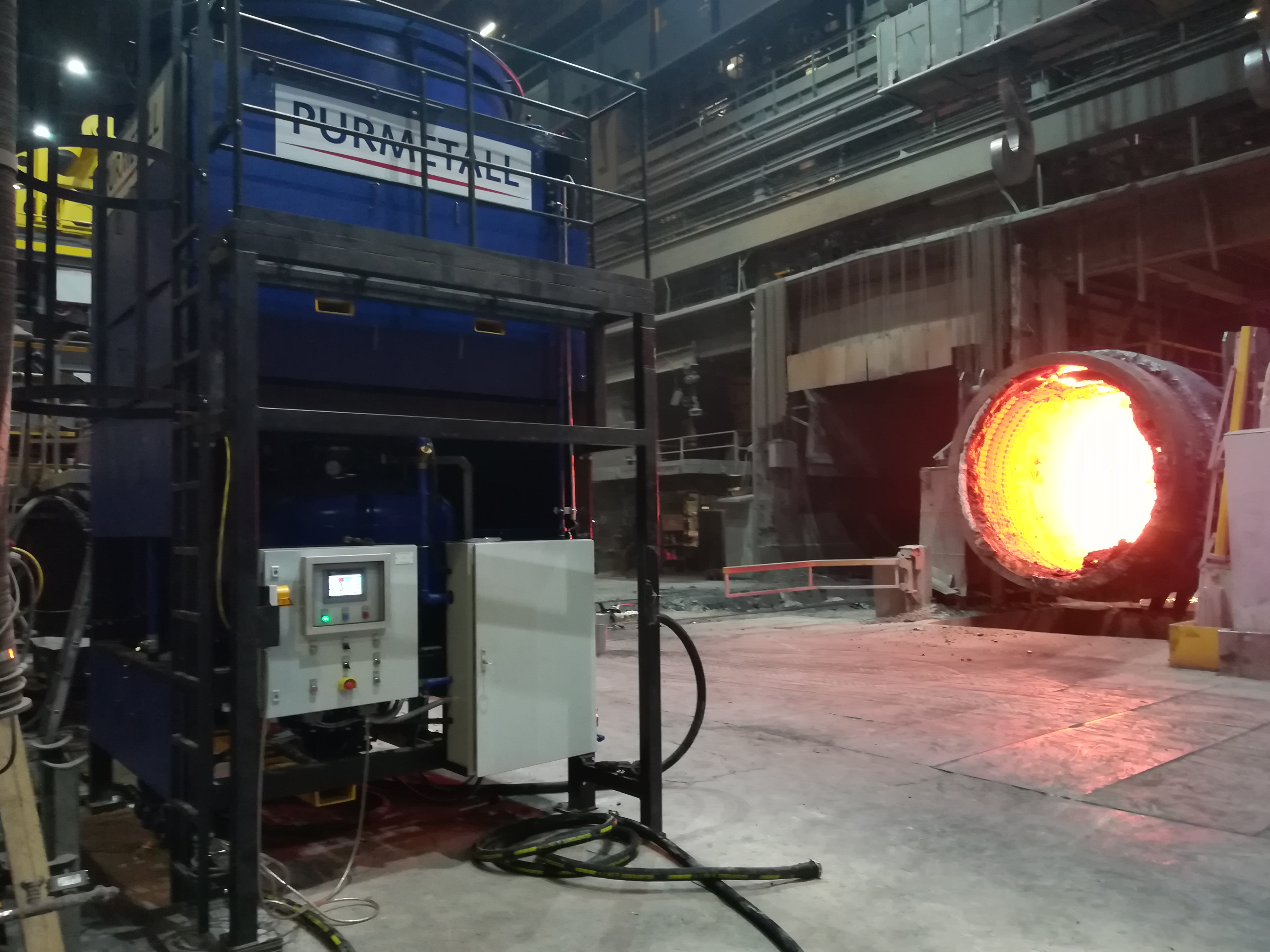

In addition to the proven injection technology, STEIN also offers systems for the repair of refractory linings. STEIN's low-maintenance "down flow" philosophy is implemented with pressure vessels of various sizes, in which the discharge outlets are equipped with full-surface stainless steel fluidisation.
In addition to pressure vessels with capacities ranging from 45 L to 6000 L, the systems can be equipped from simple inlet cones or hoppers right up to silos.

Our Gunning systems for refractory material offer following advantages:

  • Minimal maintenance effort and increased service life compared to gunning systems with a rotor principle
  • Continuous material discharge
  • Individual design according to customer requirements
  • Simple handling and maximum operating safety
  • Simple assembly and commissioning
  • All systems are enclosed in a robust steel frame and are suitable for transport by crane and/or forklift truck.
  • Precise metering of the material through integrated weighing
  • Both stationary and mobile use possible
  • Compressed air and water fittings are secure installed in a cabinet
  • Integrated regulating and control valves for transport media and bulk material
  • Complete automation through independent control
